New ERIBA Touring Troll 530

From
£20,860

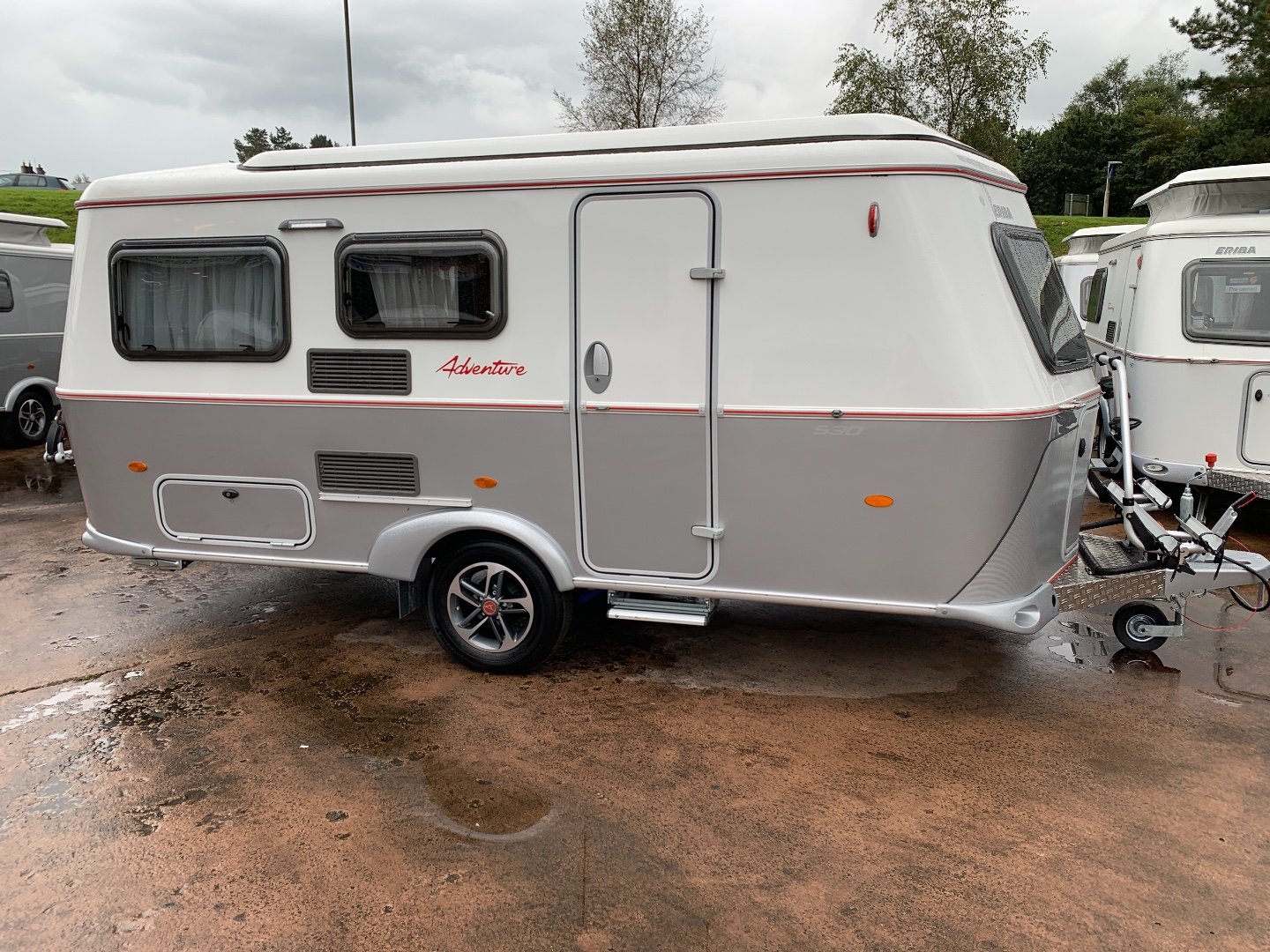

ERIBA Touring Troll 530

The ERIBA Troll 530 is one of Eriba’s iconic touring caravans. This three-berth model is effortlessly stylish and provides you with everything you’ll need to keep you comfortable on the road. Its small size and streamlined design have the advantage of not needing a large car to tow it. Erbia took inspiration from aircraft engineering when designing their touring caravans resulting in top-class construction you can really rely on. If you want to stand out from the crowd, the Eriba Troll 530 could be for you.

The ERIBA Touring Troll 530 is available in the following finishes

  • Stucco (White) - Standard
  • GT Pack - Silver
  • 60 Edition - White/Silver
  • Rockabilly - White/Red
  • Ocean Drive - White/Blue
  • Adventure - White/Silver, Red ALV Graphic Pack

Examples of these can be found on our main ERIBA Touring page.

Living

The lounge benefits from the V-shape at the front of the caravan. The split windows let in plenty of light and there’s a little extra space. The seating is comfortable and spacious for two adults. The table attaches to the front of the caravan under the windows, however, it can also be moved outside and fixed to the side of the van, allowing you to make the most of the outdoors.

Sleeping

The standard fixed rear bed features a comfortable foam mattress, setting you up for a good night’s sleep. There is also a large storage compartment found underneath the bed. The lounge converts to make up a spacious single at the front. (Also available as a multifunctional rear dinnete as an option)

Washroom

Eriba’s intelligent space-saving design really shows in the bathroom. You’ll find everything you need in this compact space. A sink, toilet, shower and vanity unit are all provided. No need to worry about privacy when the pop-top roof is open either - the fabric liner takes care of that.

Kitchen

The compact kitchen is cleverly laid out and is equipped with all the appliances you’ll need on the road. A large sink and two-burner hob can both be covered to create a good amount of work surface. This can be extended further with an extension flap. The large fridge also has a handy freezer compartment and there’s plenty of cupboard space for all your kitchen essentials and supplies.

ERIBA Touring Troll 530 Highlights

  • Perfect interior climate thanks to lifting roofcanvas window
  • Unique design principle based on aircraft engineering
  • Optimal road holding characteristics and driving safety
  • Optimal brake force thanks to AAA Premium Brake
  • 1.95 m headroom thanks to ERIBA lifting roof

Chassis

  • Fully galvanized tubular frame chassis with trailing arm axle and fully galvanized axle body
  • Extra long drawbar for more driving stability and enough space for a drawbar carrier
  • Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky emergence)
  • Anti-skid coupling with 4 friction pads and one-handed operation (suppresses rolling and pitching movements)
  • Plastic cover for drawbar
  • Galvanised plug-in corner steadies
  • Mud flaps

Body

  • One-piece entrance door with storage shelf and storage net on the inside of the door
  • Pop-top roof tent fabric with ventilation and integrated mosquito net
  • All windows with mosquito net, blackout blind and ventilation
  • All windows tinted and with double acrylic glazing
  • Integrated front storage compartment for 2 x 5 kg gas bottles
  • Extendable entrance step
  • Pop-top roof, GRP for reduced hail sensitivity.
  • Stable grab handles at the front, continuous manoeuvring handle at the rear
  • Insulated gas bottle compartment with robust and light aluminium chequer plate floor and low loading edge
  • Front flap with parallelogram opening and low loading edge

The ERIBA Touring Troll 530 is available in the following layouts:

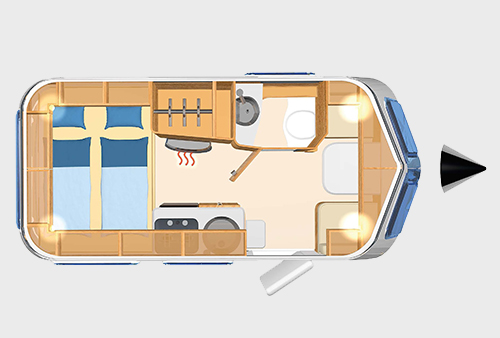

Fixed Bed - Standard
ERIBA Troll 530 Layout Fixed Bed


Seating group in the rear with opening window, left hand side (Optional - Additional charge applies)

ERIBA Troll 530 Layout Rear Dinette



Overall Length approx. cm579
Body length approx. cm471
Overall width approx. cm210
Overall height (closed pop top roof) approx. cm226
Internal length approx. cm466
Internal width approx. cm200
Maximum headroom in living area (opened pop top roof) approx. cm195
Unladen weight approx. kg926
Mass in running order approx. kg965
Maximum payload approx. kg335 - 435
Maximum permitted mass kg1300 - 1400
AxleMono
Tyre size185 R14 C 102 Q
Maximum vertical load100
Floor thickness mm35
Side walls / roof approx. mm28/2628/26
Berths3
Bed size front L x W approx. cm198 x 93
Bed size rear L x W approx. cm198 x 140
Refrigerator capacity approx. l70
Heating typeGas heating 3500 W
Fresh water tank l2 x 13/30 (O)
Awning length approx. cm730

(O) = Optional Extra

Please contact us for more information.

ERIBA Touring specifications and pricing are subject to change without notice. All prices are stated in GBP£, inclusive of UK VAT at 20.0% & On The Road Charges (OTR including delivery from Germany, registration and PDI) valid as of 1st July 2020. Possible import duties are not included and will be charged separately.


Enquire about this vehicle?
