HYMER Free 540 Camper Van
The Free 540 from HYMER is a compact campervan perfect for adventurous travellers. Its size means you’ll have no trouble getting to your destination, even if it’s at the end of some tricky country lanes. Clever practical design features open up the interior, making it feel spacious and it’s ready to go at a moment’s notice. The Free 540 has been designed with the spontaneous traveller in mind.
Living

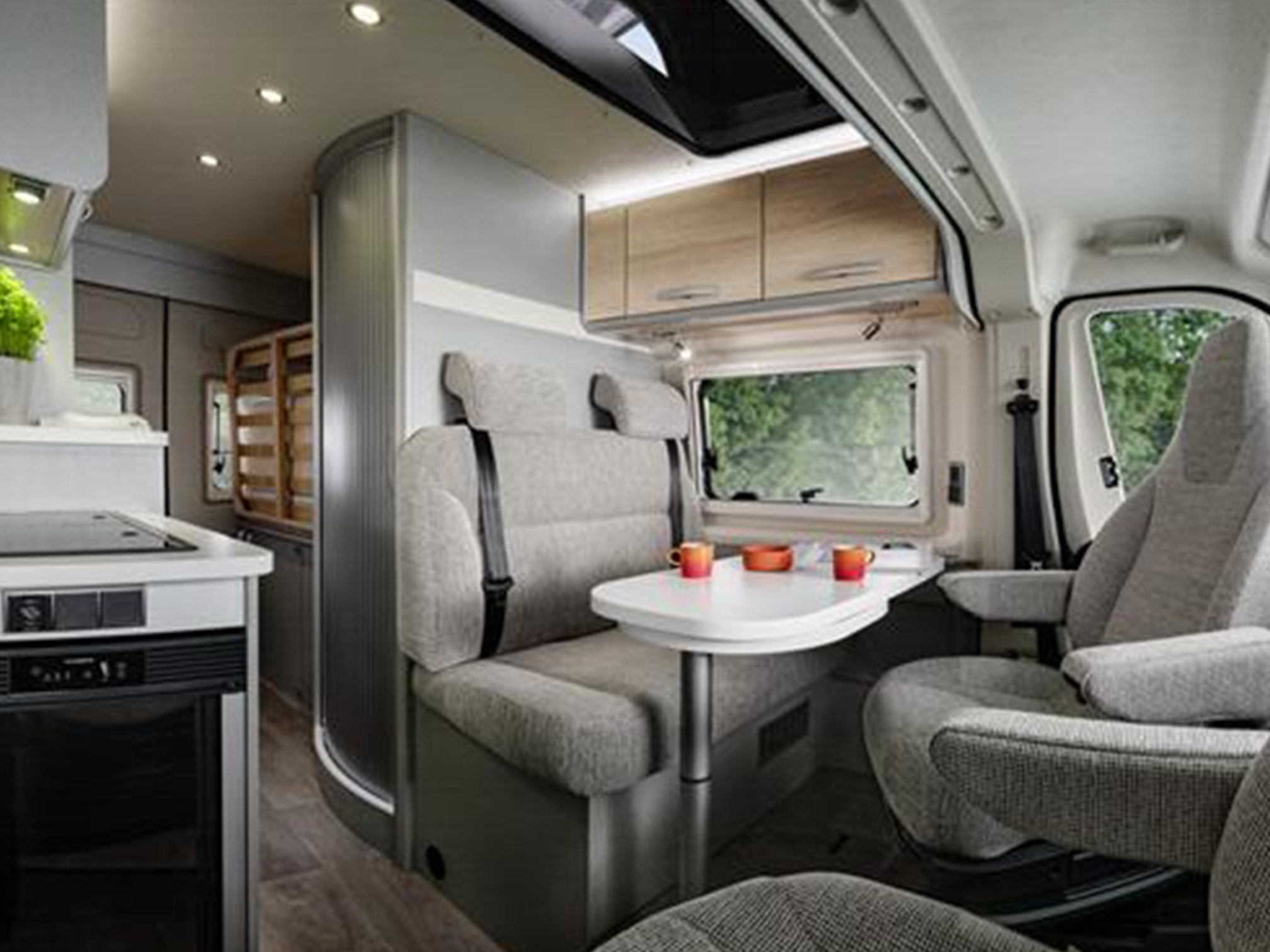

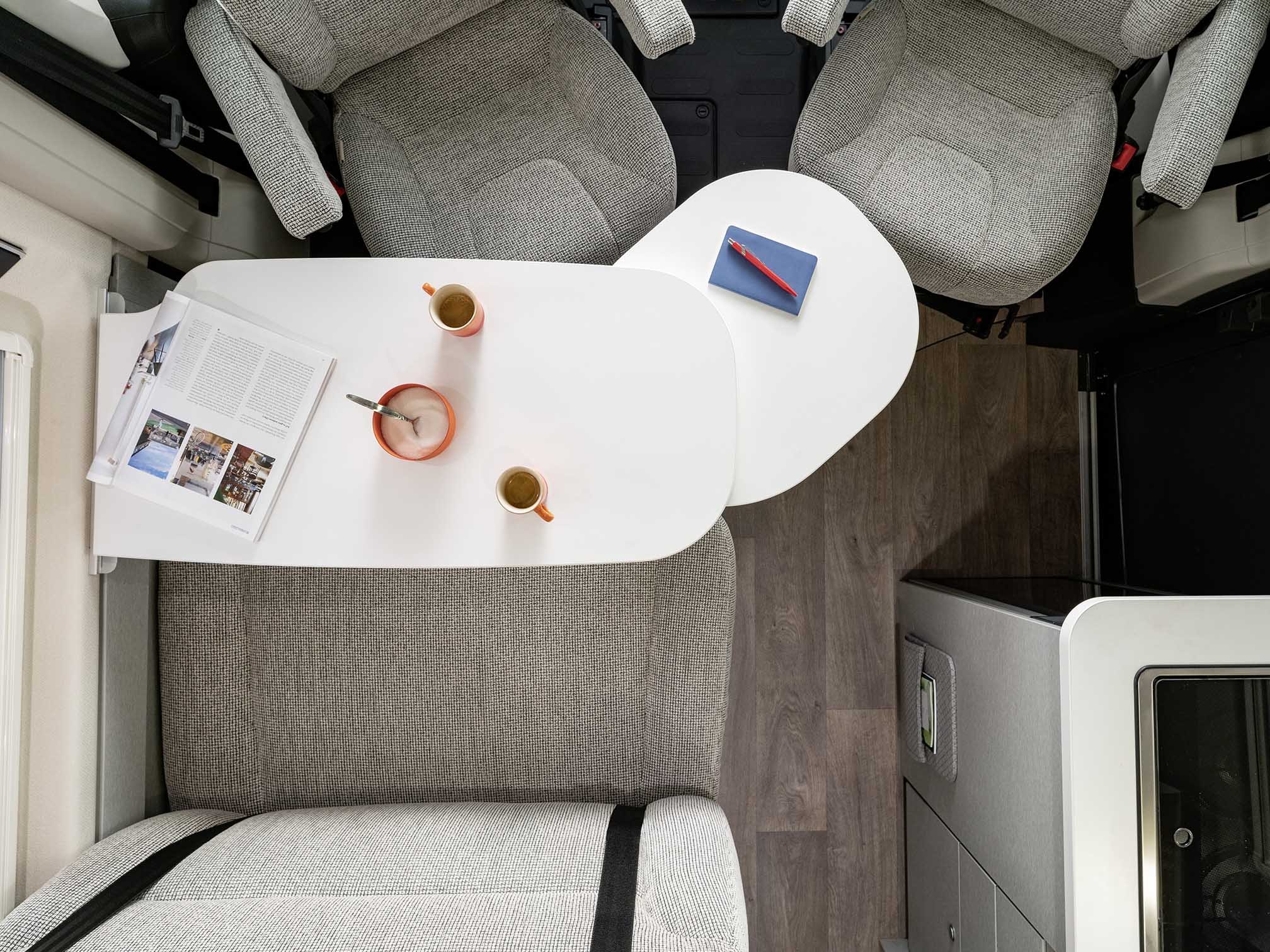

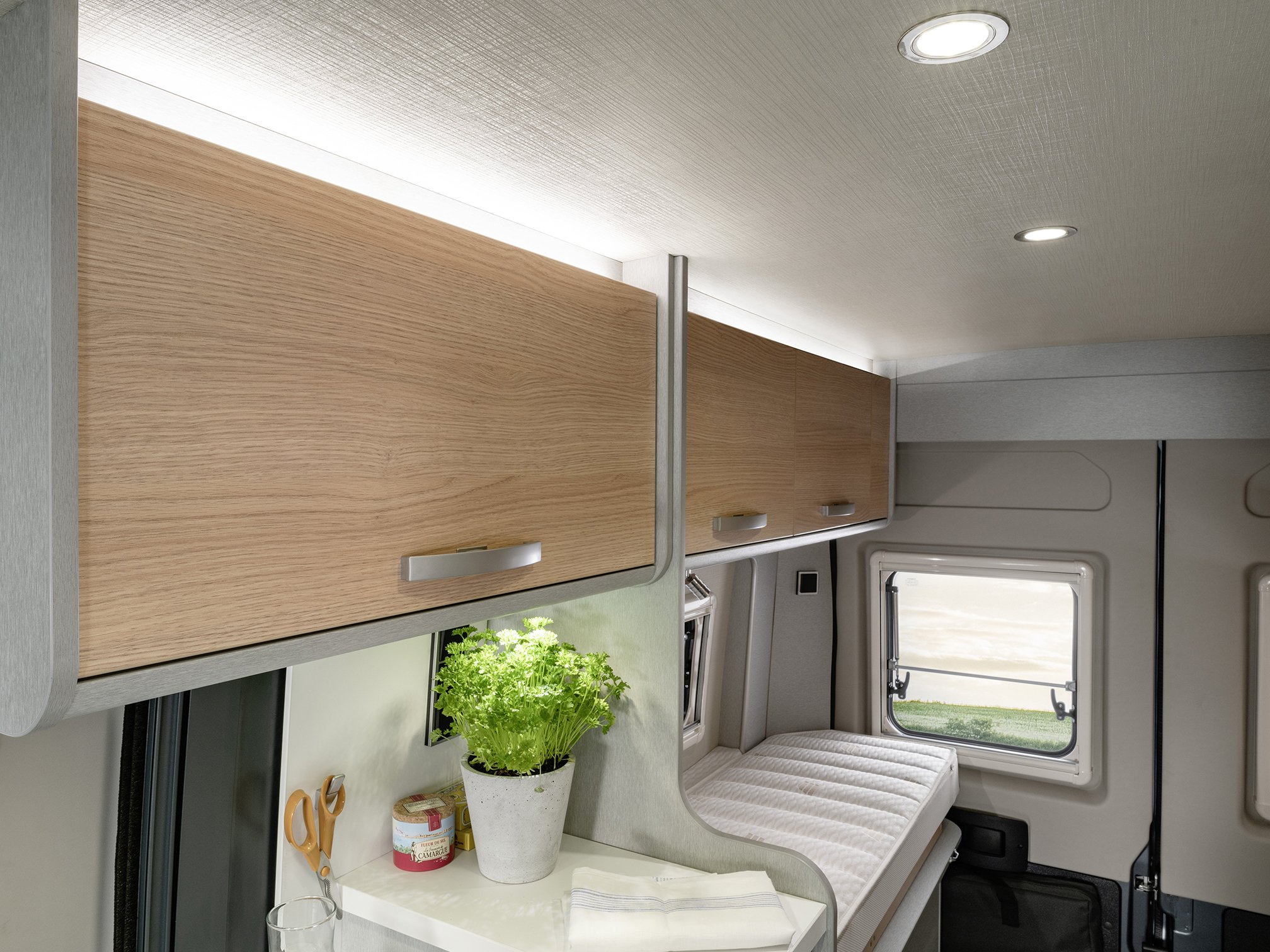

The HYMER Free 540 has been created with a modern design in mind. Matte white surfaces and detailing in silver-grey help the interior feel spacious and welcoming when combined with the warm oak tones of the overhead lockers. With the help of swivelling cab seats, there’s plenty of room for four to enjoy the living space. The table extends, giving you a bit of extra surface space when you need it and overhead lockers provide plenty of storage space.
Sleeping

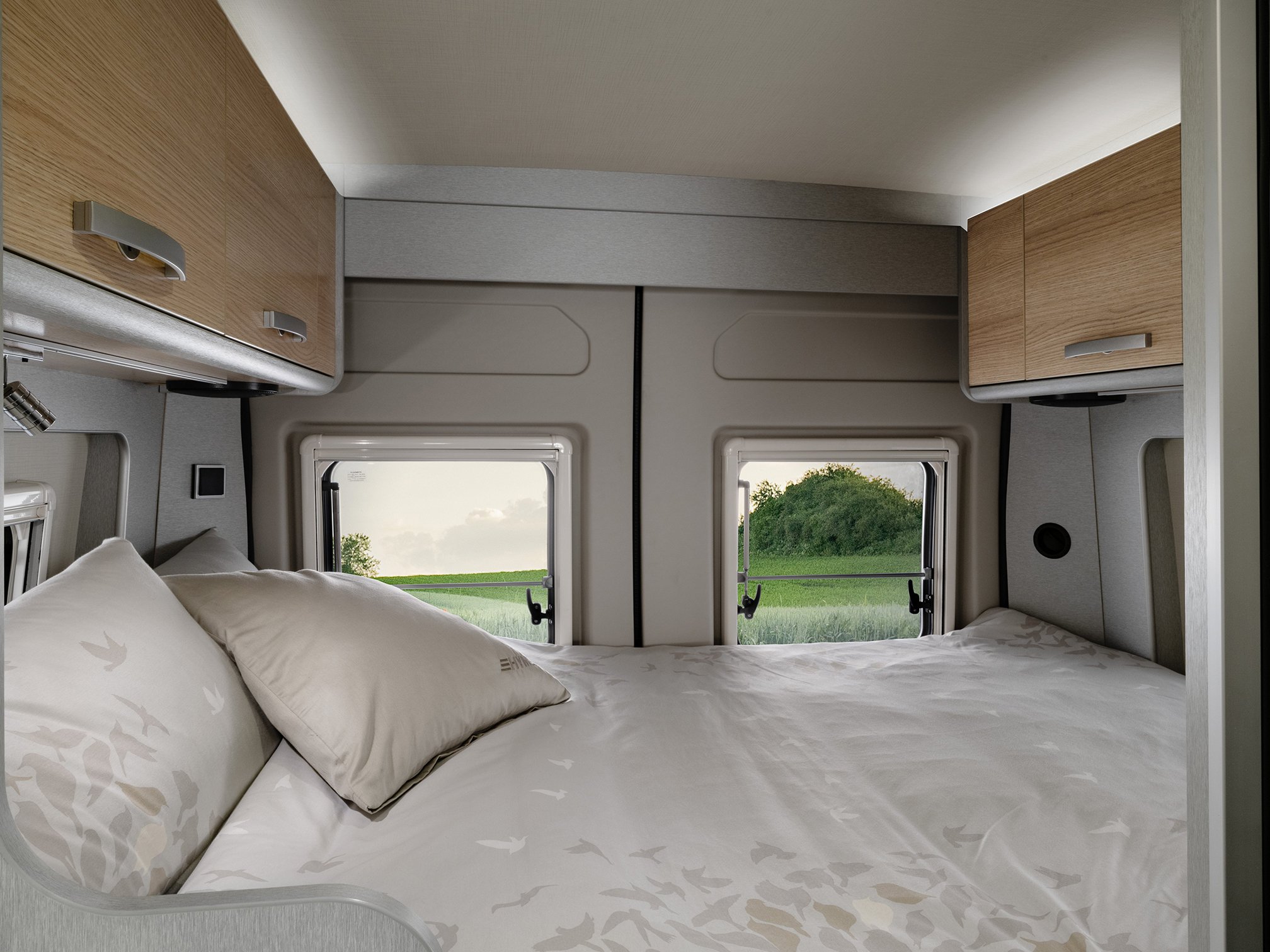

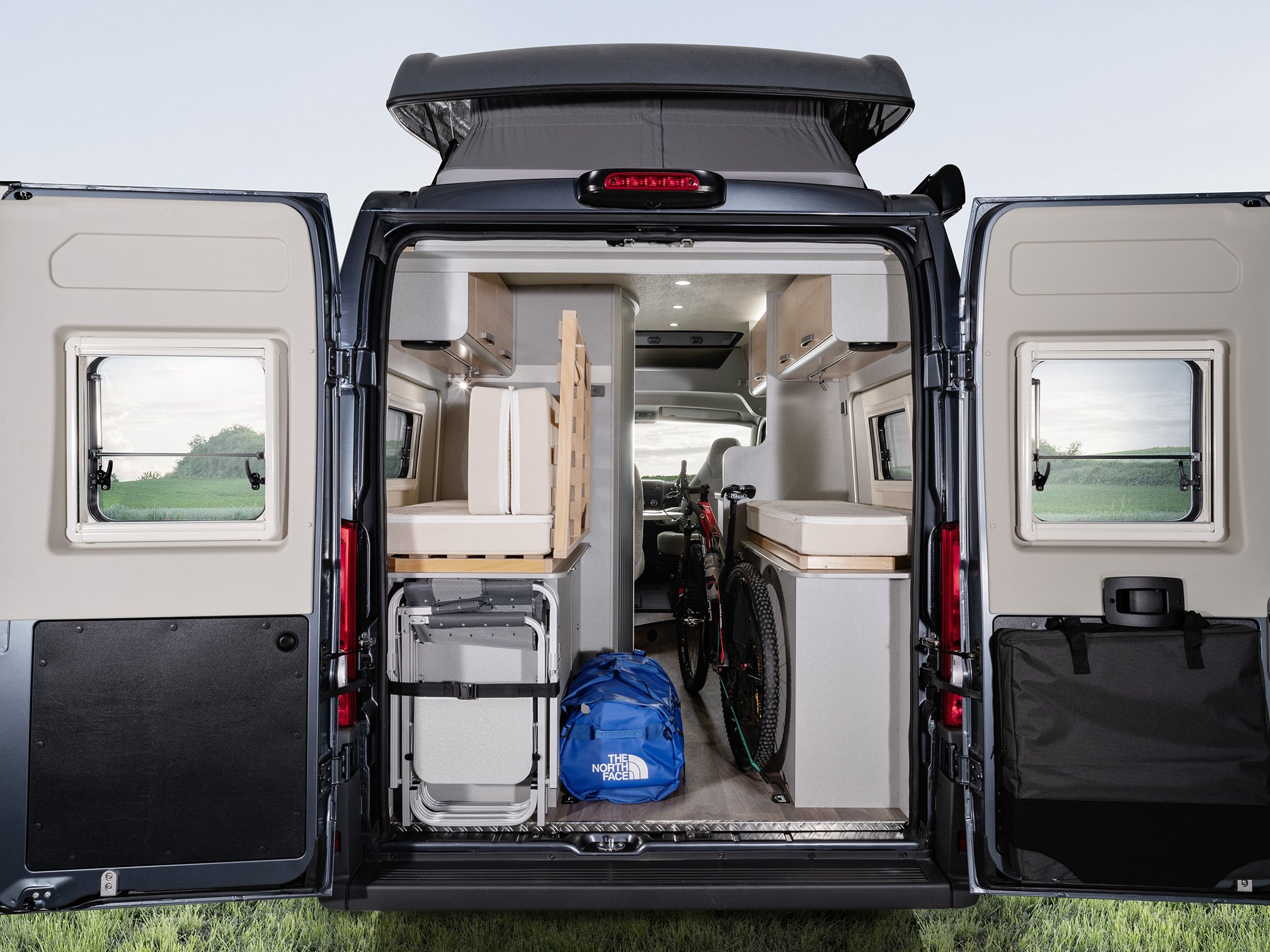

The double bed at the rear has a slatted frame and a cold foam mattress for extra comfort. During the day, the bed frame can be raised vertically to create a convenient space through which large items, such as bicycles or surfboards can be loaded.
Extra sleeping space can be added with the optional pop-top roof which features another comfy double bed. There’s also an optional extra cushion which converts the sleeping area into a single bed. This compact camper creatively makes space for everyone.
Washroom
The HYMER Free 540 has a compact washroom which packs in all the features of a fully-equipped bathroom. There’s a washbasin, toilet, mirror cabinet, shower and a window to let in a bit of natural light. You can use the shower inside the campervan or, thanks to the window’s design, you can set up an outdoor shower. You can easily attach the shower head to the outside of the vehicle with a suction cup, perfect for trips to the beach.
Kitchen

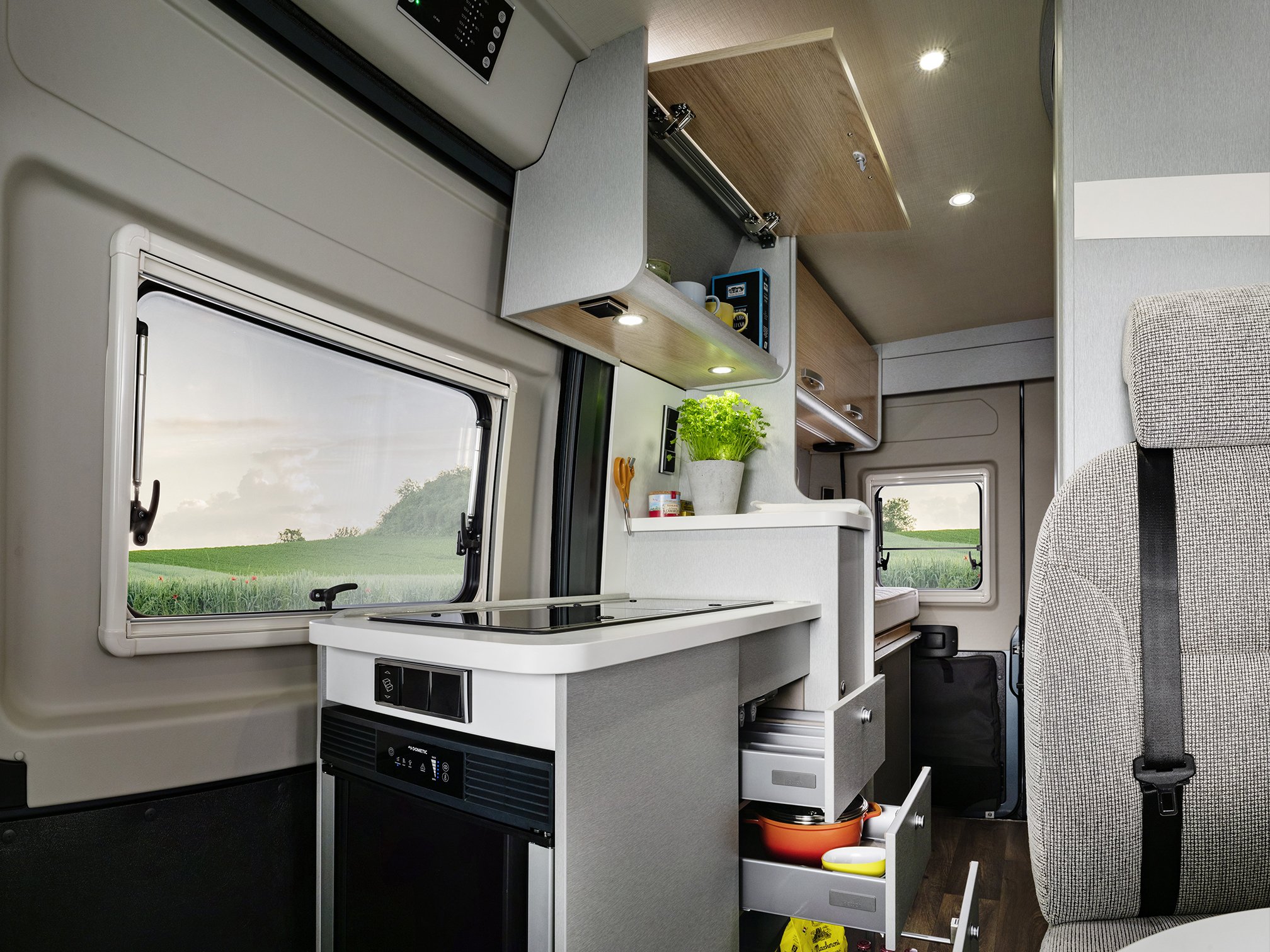

The clever compact kitchen features a cooker/sink combination which gives you the flexibility to prepare a whole range of meals on the go. A glass cover fits over the sink and hob to create a large surface area for food preparation and there’s plenty of storage space in the 70 litre compressor fridge, overhead lockers and extra-deep drawers.
HYMER Free 540 Camper Van Highlights
- Compact vehicle length of 5.41
- Can sleep up to 4 people with optional pop-top roof
- Insulated aluminium framed windows
- Pleated insect screen for sliding door as standard
- Pleasant atmosphere in the living and kitchen area thanks to the standard ambient lighting
- Fresh and modern interior in the Grand Oak furniture finish
- Fine silver colour accents and matt white trendy laminate
HYMER Free Standard Equipment
- Daytime running light
- Seat base cover
- Full wheel covers
- Breakdown kit - air compressor with additional valve
- 90 l Diesel tank
- Driver and passenger airbags
- ESC with Brake Assist (HBA), ABS, ASR, LAC, MSR, Hill Start Assist and Traction+
- Electric power cab windows
- Immobilizer (electric)
- Seat belt reminder (Audible alarm and warning light) (if driver\'s seat belt\'s not fastened)
- Power steering
- Sensor to detect water in diesel tank
- Co-axial steering wheel adjustment
- Bracket for Smartphone / tablet
- Lockable storage compartment in the middle of the dashboard (e.g. for a laptop)
- Glove compartment passenger side - cooling compartment for 1.5 l bottles
- Door trays with integrated bottle holder for 1.5 l bottles
- Digital display with trip computer
- Central locking system with internal operation and remote control
- Tool kit
- External temperature sensor
- Fiat Ducato 2.0 Multijet 85 KW/115 HP, Euro 6
Superstructure
- Insulated floor
- Tilting rooflight above bedroom, 400x400 mm
- Tilting rooflight above living area, 700x500 mm
- Dark-tinted windows in the living area
- Exterior finish: White
- Electric step
- Insulated aluminium framed windows
- Rooflight above bathroom, 400x400 mm
- Expandable rear door opening
- Black rain gutter above the sliding door with integrated LED lighting
- Insulated aluminium framed bathroom window
Outfitting
- Driver and passenger seat, swivelling, height and tilt adjustable, with armrests
- Gas bottle storage compartment for 2 gas bottles
- Extra-deep drawers with high-quality runners incl. self-closing
- Compact bathroom with roller shutter door
- Cassette toilet (with level indicator)
- Blackout blinds and mosquito net in living area
- Shower tray with all-round drain channel
- Mirror cabinet
- Vertically adjustable bed slats
- Mosquito net roller blind for sliding door
- Pedestal with spacious stowage compartment
- Lashing eyes for ideal fixation located in floor and rear bed box
- Suspended table with pull-out extension
- Cold foam mattress(es) for rear bed(s) with comfort sleeping system
- Shower head holder with suction cup
Interior design
- Driver and passenger seats, armrests and seat bench upholstered in living area fabric
- Furniture finish: Grand Oak
Heating / A/C / On-board systems
- 4 kW warm air heating with warm water boiler
- LCD heating control unit incl. iNet ready
- 95 Ah battery with charger
- 230V external socket with ground fault circuit breaker for 230V & 12V
- Internal temperature sensor
- LED lighting
- Ambient lighting in living- and kitchen area
Kitchen
- Cooker-/sink combination with glass cover (2-burner gas cooker)
- 100 l Fresh water tank
- 100 l Waste water tank (underfloor)
- Level indicator for fresh and waste water tank
- Extra-deep drawers with high-quality runners incl. self-closing
- Expandable kitchen worktop
- Insulated waste water tank
- 65 l Compressor fridge
| Standard chassis | Fiat Ducato |
| Standard engine type | 115 Multijet |
| Displacement, ccm | 1956 |
| Max. output (EC standard): kW (HP) at rpm | 85 (115) at 4000 |
| Max. torque (EC standard): Nm at rpm | 290 at 1750 |
| Emission standard | Euro 6 |
| Control system (Drive) | 2 OHC (With tooth belt) |
| Type of drive | Front wheel drive |
| Number of gears | 6 |
| Tank capacity approx. l | 90 / 120 (O) |
| Tyres | 215/70 R15 C |
| Overall length approx | 5.41m |
| Overall width approx | 2.08m |
| Interior width approx | 1.98m |
| Overall height approx | 2.60m |
| Total height with closed pop-top roof approx | 2.70m |
| Total height with opened pop-top roof approx | 3.50m |
| Standing height in living area approx | 1.90m |
| Wheelbase approx | 3.45m |
| Rear overhang approx | 1.01m |
| Turning circle approx | 12.5m |
| Mass in running order | 2740kg |
| Standard maximum permitted mass | 3.3t |
| Optional maximum permitted mass | 3.5/3.85t |
| Maximum load approx | 560/760(O)/1110(O) kg |
| Permitted braked towed weight | 2000/2500 (O) kg |
| Permitted number of passengers | 4 |
| Berths: | 2/4 (O) |
| Bed size rear L x W approx | 196 x 132/122 cm |
| Bed size pop-top roof L x W approx | 200 x 135 (O) cm |
| Bed size front L x B approx | 182 x 101/62 (O) cm |
| Refrigerator capacity approx. l | 65 |
| Gas hob | 2 |
| Fresh water tank approx. l | 100 |
| Water supply approx. l (while driving) | 20 |
| Hot water supply | Boiler 11 l |
| Waste water tank approx. l | 100 |
| Heater with hot air system | Truma Combi 4 LCD |
| Sockets 12 V / 230 V / USB | 1 / 2 / 1 |
| Gas bottle volume approx. kg | 1 x 5 / 1 x 11 |
| Starter battery, Ah | 95 / 110 (O) |
| Add-on battery, Ah | 95 / 190 (O) / 230 (O) |
HYMER Camper Van specifications and pricing are subject to change without notice. All prices are stated in GBP£, inclusive of UK VAT at 20.0% and are valid as of 1st July 2020. Possible import duties are not included and will be charged separately.
Please note, that for the UK the offered models and equipment components can differ from the descriptions and information given here. The illustrations are for example purposes only, and may feature optional extras, accessories and vehicle decorations which are not supplied as standard. Optional extras are included in the current price list and available at the extra cost indicated. We reserve the right to modify the equipment or make product improvements not shown in the photos during the lifecycle of the model ranges. We cannot accept any liability for content errors and modifications.
